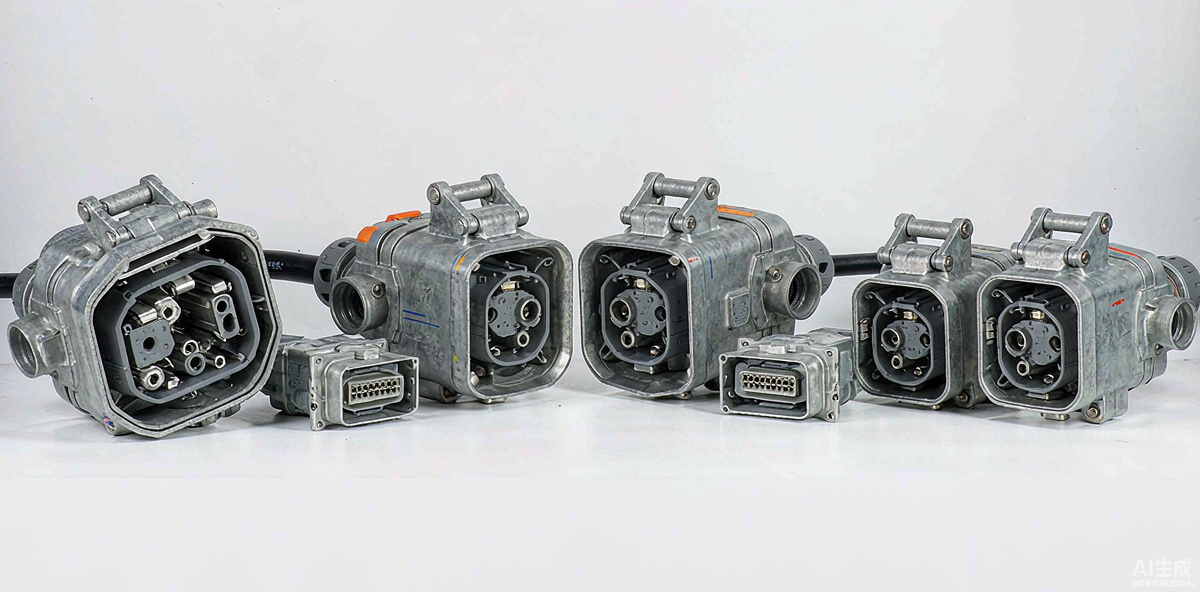

Specialized connector solutions for robot joints, end effectors, servo drives and control cabinets – compatible alternatives to the series most used by robot manufacturers worldwide.
Molex MiniMix Compatible
MiniMix
Compact power connectors with secondary lock for servo motors and drives.
| Type | Power |
| Current | 10-40A |
| Voltage | 600V |
| Poles | 2-8 |
| IP rating | IP20 (internal) |
| Locking | Secondary lock |
| Intermateable with | Molex MiniMix |
| Mounting | Panel / cable |
JAE VSP Compatible
VSP
VSP series for robot servo interfaces – low mating force, high reliability.
| Type | Signal + power |
| Current | 4-20A |
| Voltage | 250V AC |
| Poles | 4-20 |
| Mating force | Low |
| Reliability | High vibration |
| Intermateable with | JAE VSP |
| Locking | Latch |
binder B23 Hybrid
B23
B23 circular hybrid – power + signal in one IP67 connector for end-of-arm tooling.
| Type | Hybrid (power+signal) |
| Current | 10A signal / 16A power |
| Voltage | 250V |
| Poles | 7+2 / 5+2 / 4+3 hybrid |
| IP rating | IP67 |
| Locking | Bayonet |
| Intermateable with | binder B23 series |
| Mounting | Cable / panel |
TE Dynamic Series Compatible
Dynamic
Dynamic D-1000/D-3000/D-5000 series for power and signal in robotics & automation.
| Type | Power + signal |
| Series | D-1000 / D-3000 / D-5000 |
| Current | 2-40A |
| Voltage | 600V |
| Poles | 3-12 |
| IP rating | IP20-IP67 |
| Locking | Secondary lock |
| Intermateable with | TE Dynamic |
| Mounting | Panel / cable |
Specifications are typical values. Please contact us for the latest datasheets and custom cable assemblies.
